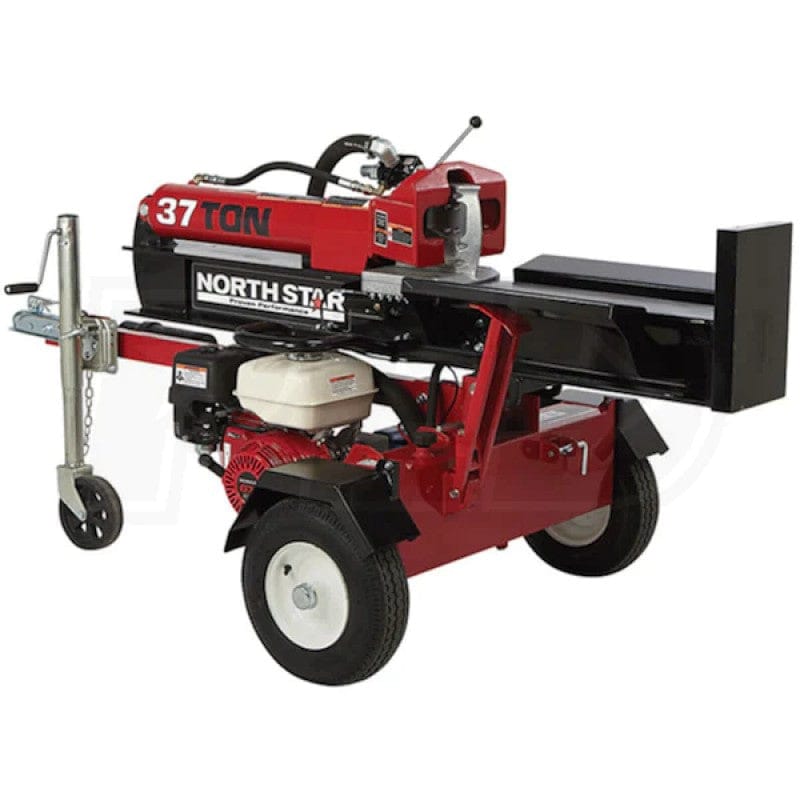

This NorthStar® Horizontal/Vertical Log Splitter’s multi-patented design gives you premium components and exclusive features that let you save time, increase performance and work effectively. You can count on NorthStar to bring strength, durability and innovation every time. The backbone of this log splitter is an industrial-strength I-beam with heavy plate steel reinforcement. The patented wedge design, made with alloy steel, maintains consistent split and has a unique curve that reduces initial contact area for maximum penetrating force. Add the optional NorthStar Wedge Wings (Item# 110910, sold separately) to make each stroke more efficient. Auto-return wedge saves time and effort when splitting.The premium hydraulic system is protected by a quad filtering system that uses four different components to protect the hydraulic system from contaminants. Large hydraulic oil reservoir allows fluid to cool, reducing wear and allowing fluid to last longer. Slide-action self-leveling pivot makes it simple to switch between horizontal and vertical split. Designed to be easy to use in both orientations. Some assembly required.
Features + Benefits
277cc Kohler commercial CH395 Series engine with low oil shutdown and steel fuel tank
Designed to split logs up to 25in.L x 16in. dia.
American-made pump and Brand™ valve
Heavy-duty steel-reinforced hose
NorthStar hydraulic cylinder with premium Halite seals
Auto throttle control to save fuel, reduce noise and prolong engine life
Includes patented wedge system with log stripper to clear logs from retracting wedge
Engine guard protects against falling logs and debris
Heavy-duty log tables prevent logs from rolling off when split
Adjustable jack with oversized wheels and 2in. coupler
Specification
item#
11312
Brand
NorthStar
Manufacture’s Warranty
4 year limited warranty
Ship Weight
752.0 LB
Product Type
Gas
Ram Force
37 Tons
Max. Log Diameter
16 in
Max. Log Length
25 in
Continuous Force
34.3 Tons
Engine Brand
Kohler
Engine Model
CH395
Engine Displacement
277 cc
Cycle Time
14 sec
Tire Size
8 in
Splitter Orientation
Horizontal
Wheels
Yes
Product Weight
635 lb
Dimensions L x W x H (in.)
90 x 45 x 45 in
