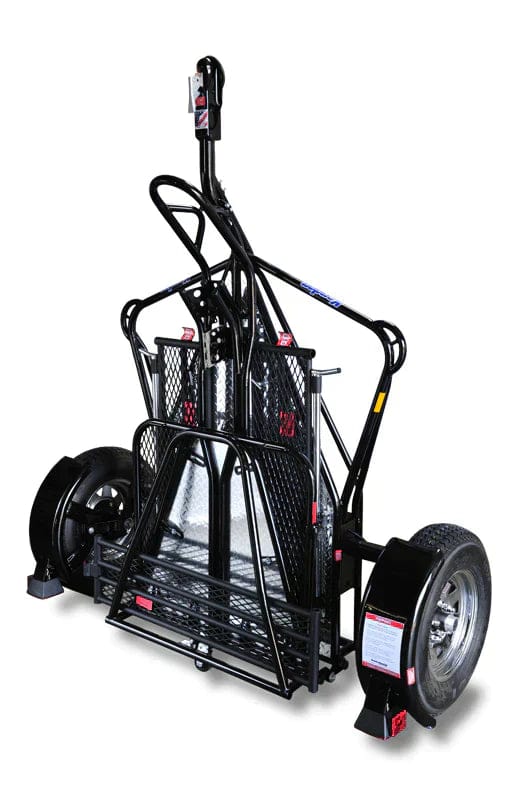

Single Ride-Up SRL Stand-Up™ Motorcycle Trailer

Single-Rail Ride-Up SRL Folding Stand-Up™ Motorcycle Trailer
The Kendon Single-Rail Folding Stand-Up™ Motorcycle Trailer is our premiere single bike trailer and incorporates the best we have to offer. The Single-Rail SRL may seem small, but it packs a powerful punch of lightweight, user-friendly design and amazing, space-saving convenience. The Single Ride-Up trailer offers ride-on capabilities, Kendon’s renowned towing performance and load carrying capacity of one full-size motorcycle up to 1,000 pounds. When in storage, the one-rail ride-on bike trailer takes up about the same space as a small bedroom dresser or a chest of drawers.
Ride-on capabilities
Thanks to our Suspension Reactive Loading (SRL) frame geometry and suspension design you can ride your bike onto the single trailer, making it much easier to load heavy, full-size bikes. As you ride your bike onto the trailer the suspension compresses under the weight of the bike, virtually eliminating the ramp-to-trailer apex. Once the bike is loaded, the suspension rebounds back up and levels the trailer.
Safety first
Our Ride-Up models feature wider loading ramps, wider rear sections, and foot extensions to provide safe foot placement as you ride the bike onto or back the bike off of the trailer. Lightweight design for true one-person operation (a spotter is always recommended for safe trailer usage).
Flying solo
The Single-Rail trailer features a wide expanded metal with diamond plate deck area designed to hold one full-size bike such as a Harley-Davidson, GoldWing, K1600, adventure bike, etc. The heavy-duty torsion-bar axle and hub combination give the Single-Rail its full 1,000-lbs. carrying capacity.
The Single-Rail SRL Ride-Up Folding Stand-Up™ Motorcycle Trailer is perfect for any rider – from moto to track, cruiser to sport. It combines ride-on convenience and safety with a lightweight, user-friendly, space-saving design. Designed for bikes of all sizes and riders of all styles, this is the trailer for you no matter what or where you ride.
Specifications:
Model: Single Rail Ride-Up SRL Trailer
Part Number: BB107RU
Standard Color: Black
Paint/Coating: Powder Coated
Frame Material: Steel Tubing
Deck Area: Diamond shape front, rounded square rear, 35″ x 84″
Deck/Platform Type: Aluminum Diamond Plate (.063 Gauge)/Expanded Metal
Deck/Platform Height: 13″
Weight: 340 lbs.
Load Capacity: 1,000 lbs.
Total Overall Length: 114″ without ramp
Total Overall Length: 157″ with ramp
Width: 72″
Standing Depth: 27″
Standing Height: 84″
Length from Front Tire to Rear Axle: 96″ (Max Bike Measurement)
Width Between Fenders: 54″
Width Between Rails: N/A (removable rail)
Ramp: 3-piece ramp, 45″ x 33″ total size (included)
Wheel/Tire Size: ST175/80R13 – 13″/Radial
Wheel/Rim Type: 8-Spoke Chrome/Steel
Wheel Bolt Pattern: 5-on-4½”
Hitch Class: Class 2 or Higher (recommended)
Hitch Height: 19″ – 21″
Coupler/Ball Size: 2″
Coupler: Requires 2″ Ball
Electrical Connector: 4-Pin Flat
Suspension Type: Independent Torsion Suspension
Suspension Mounts: Double Mounting Brackets
End-Units/Hubs: Removable Spindle – SuperLube
Tongue Weight: 10% – 15% of Total Load Weight (approximate)
Transportation Capabilities: Up to one (1) Cruiser, Sport, Adventure Touring, Dual Sport and/or Dirt Bikes and/or Cargo
