About This Product

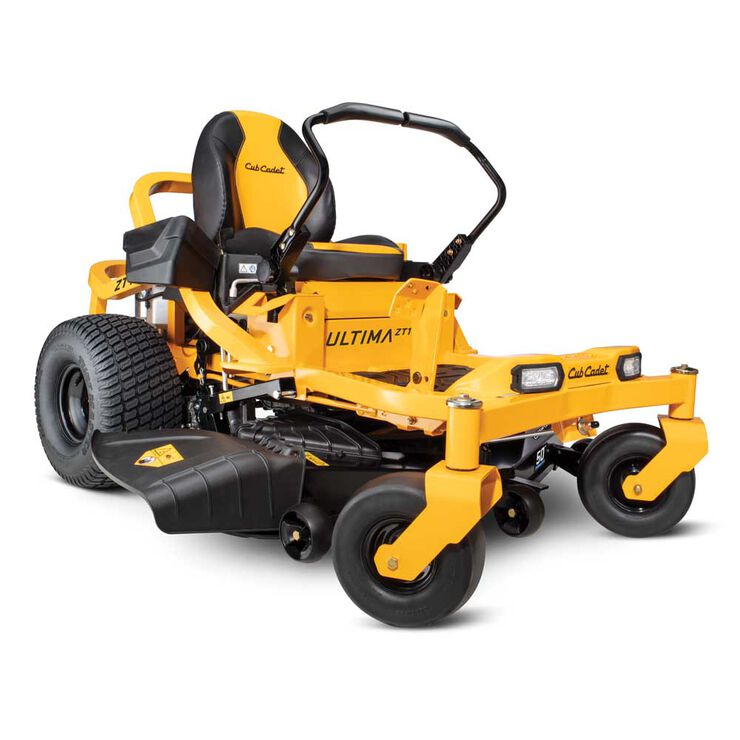

Introducing the ULTIMA ZT1 SERIES. Step up to the ultimate all-around mowing experience. The Cub Cadet ULTIMA Series ZT1 50 features a 23 HP Kawasaki FR691V series Twin-cylinder OHV Engine, 2 in. x 2 in. tubular steel frame, comfortable high back seat and much more. The Ultima Zero-Turn Riding Mower was built to raise the bar for enhanced strength, durability, redefined comfort and uncompromised performance.
Highlights
For questions about service and repair, please call the Cub Cadet customer service line (877)-428-2349, or reference the Service & Repair Document
Premium 23 HP 726 cc Kawasaki FR691V twin-cylinder OHV engine, commercial-grade power plant that meets your yards toughest demands
Dual hydrostatic transmissions dual hydro-gear EZT-2200 dual hydrostatic rear-wheel transmission for quick and effortless 7 MPH forward and 3. 5 MPH reverse zero-turn controlled ground speeds, that quickly leaves your lawn with a professional-quality finish
Tough and tubular frame the high-strength, continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear
Equipped with an 11-Gauge 50 in. fabricated triple-blade Aeroforce (high lift) deck that results in finer clippings, fewer clumps, reduced stragglers and increased evenness, protected by the Cub Cadet triple guard corrosion defense system with e-coat and a lifetime warranty
Dial in your perfect cut with a foot operated deck lift and a dial control knob offering 15 qt. in. deck height adjustments from 1 in. to 4. 5 in. leading to a precise and even cut
High comfort, high performance an automotive-inspired, ergonomic, fully adjustable premium 20 in. high back seat and a durable, advanced polymer seat suspension system, adjustable lap bars and industry-exclusive ergonomic hand grips optimized for comfort providing you the confidence to maximize your speed and reduce operator fatigue
Turf damage prevention 11 in. x 6 in. to 5 in. smooth tread front wheels pivot 180 without turf damage, 20 in. x 10 in. to 8 in. turf master premium rear tires offer excellent traction, minimize turfing and provide a better ride on uneven ground at higher speeds
Ease of maintenance an open frame design and hinged/removable floor pan allow easy access to the deck and engine for quick and simple maintenance
Command center conveniently located control panel enhances operator productivity and vibration-dampening soft rubber floor mat provides sure footing, comfort and ample leg room
Precision trimming offset front casters align with blade edge for trimming precision while maintaining line-of-sight and stable balance
Illuminating dual-LED headlights provide ultimate vision for mowing in low light conditions and tow hitch come standard
Mow for an extended period of time: 3. 5 Gal. fuel tank capacity to keep you mowing and minimize time loss for refueling needs
Electronic fingertip blade engagement PTO allows for smooth operation of the deck
3-way adjustable ergonomic lap bar design with integrated parking brake and mow-in-reverse, provides comfort with a simple operation
3-year/unlimited-hour warranty plus limited lifetime warranty on frame and deck for the ultimate peace of mind
Expand your movers capabilities: full lineup of premium attachments and accessories include baggers, mulch kits, carts and many other attachments (sold separately)
Cub Cadet Ultima ZT1-50 comes fully crated and requires some assembly upon arrival
Dimensions
Assembled Depth (in.)
82 in
Assembled Height (in.)
35 in
Assembled Width (in.)
57 in
Cutting Width (in.)
50 inches
Front Wheel Size (in.)
11
Mower Deck Width (in.)
50 in
Rear Wheel Size (in.)
20
Turning Radius (in.)
0
Details
Assembly Required
Yes
Commercial / Residential
Residential
Cutting Options
Side-Discharge
Deck Material
11 Gauge Steel
Deck Type
Fabricated
Drive Type
Rear-wheel Drive
Engine Displacement (cc)
726
Engine Make
Kawasaki Engine
Engine Torque (ft.-lb.)
0
Fuel Tank Capacity (gal.)
3.5 gal
Horsepower (HP)
23 hp
Included with Riding Mowers
Battery(s),Engine Oil
Lawn Mower Type
Zero Turn Mower
Maximum Cutting Height (in.)
4.5 in
Maximum Forward Speed (mph)
7
Maximum Reverse Speed (mph)
3.5
Minimum Cutting Height (in.)
1 in
Mower Size
Large
Number of Blades
3 blades
Number of Cylinders
V-Twin
Number of Deck Wheels
3
Oil Capacity (oz.)
67.2 fl oz (US)
Power Type
Gas
Product Weight (lb.)
570 lb
Recommended Oil Type
10W-30
Refurbished
No
Returnable
30-Day
Riding Mower Features
Adjustable Cutting Height, Adjustable Speed, Assembly Required, Built-in Hitch, Cup Holder, Headlights, Keyed start, Pneumatic Tires, Reverse Mowing, Rust resistant deck, Swivel Wheels
Size of Yard
2 – 4 Acres
Start Type
Electric
Terrain Type
Flat with Obstacles, Hilly
Transmission Type
Hydrostatic
Warranty / Certifications
Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
Lifetime Warranty
