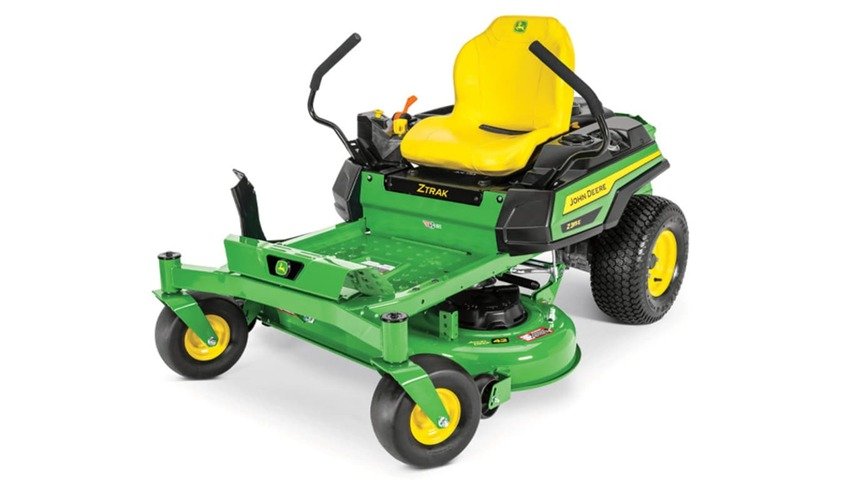

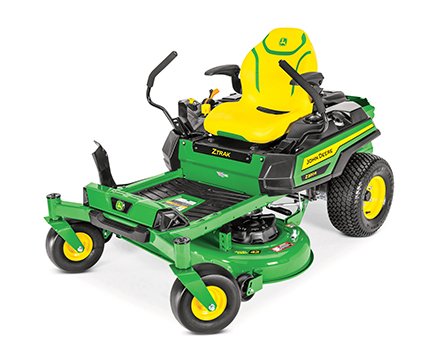

Z315E ZTrak Mower with 42-in. Deck

Mow up to 2 acres
20 HP* (14.9 kW) V-Twin engine
42-in. (107 cm) Accel Deep™ Mower Deck
Maximum forward speed 7 mph (11.2 km/h) with 3-gal. (13.6-litre) fuel tank
3-year/200-hour bumper-to-bumper warranty**
Key Specs
z315e-ztrak-mower Current Model
Engine power
20 hp 14.9 kW
Engine model number
40 EXi
Forward speed
0-7 mph 0-11.3 km/h
Front caster tires
11×6-5
Drive tires
18×8.5-8
Seat back height
High back with optional armrests, 18 in. 46 cm
Width of cut
Accel Deep™ mower deck, 42 in. 107 cm
Mulching system
Optional MulchControl™ attachment
Warranty
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

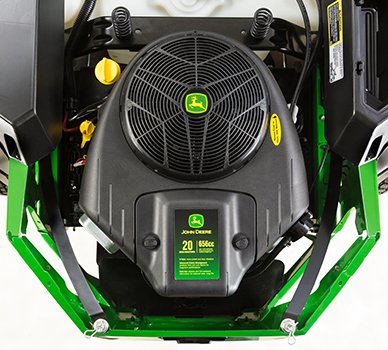

Engine
Power
20 hp 14.9 kW
Model number
40 EXi
Displacement
40 cu in. 656 cc
Cylinders
V-twin
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L
Type
Overhead valve
Battery
12 V 300 CCA
Choke/speed control
Single lever
Cooling method
Air

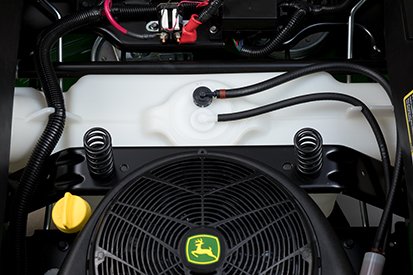

Fuel tank capacity
3 U.S. gal. 11.4 L
Fuel gauge
Translucent tank
Drive train
Dual hydros
Hydro-Gear EZT-C with 1-in. (2.5-cm) axles
Hydraulic pumps
Wheel motors
Travel speed
Forward speed
0-7 mph 0-11.3 km/h
Reverse speed
0-3.5 mph 0-5.6 km/h
Speed and direction control
Twin levers
Control adjustment
3 height, 11 positions

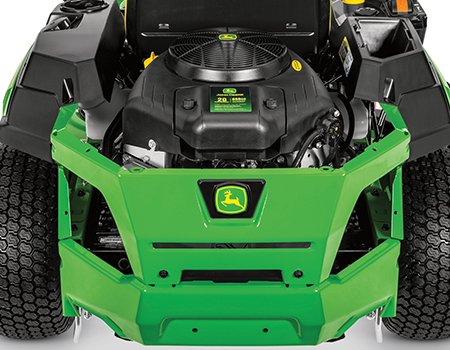

Chassis
Frame
Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/paint
E-coat/powder
Front caster tires
11×6-5
Front caster bearings
Sealed ball bearings
Drive tires
18×8.5-8
Hour meter
Yes
Service interval decal
Yes
Storage compartment
Optional covered
Cup holder
Yes
Maximum towing capacity
250 lb 113 kg
Seat
Seat back height
High back with optional armrests, 18 in. 46 cm
Fore-aft adjustment
2.9 in. 7 cm
Seat suspension
Two springs
Lift system
Type
Foot lift
Mower cut height
1.25-4.5 in. 3-11 cm
Cut height increments
0.25 in. 0.64 cm
Preset cut height
Yes
Mower deck
Width of cut
Accel Deep™ mower deck, 42 in. 107 cm
Type
Side discharge
Mower deck material
12 gauge 0.105 in. 2.7 mm
Mower drive system
V-belt
PTO
Type
Electric, 105 lb-ft 142 Nm
Drive
V-belt
Dimensions
Wheelbase
49.4 in. 1255 mm
Overall length
75.4 in. 1915 mm
Width without mower
43.3 in. 1100 mm
Width with mower
50.4 in. 1280 mm
Width with mower (deflector raised for storage)
46.5 in. 1180 mm
Height
41.6 in. 1056 mm
Weight
554 lb 252 kg
Operation
Rollover protective structure (ROPS)
No
Slope operating limit
13 degrees; 10 degrees with Material Collection System
Operator presence system
Yes
Park brake interlock
Yes
Operator video
Yes, online
Buyer’s notes
Note 1

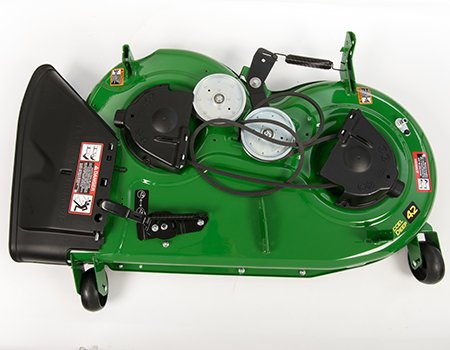

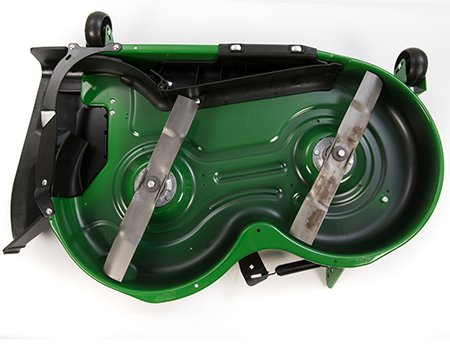

Durable Accel Deep Mower Decks are made from 12-gauge steel with double captured mower wheels
Note 2
Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
Note 3
Integrated park brake is automatically applied when steering levers are stowed outward
Warranty
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
Mulching system
Optional MulchControl™ attachment
Rubber floor mat
Optional
Sun shade
Optional
Mounted sprayer
Not available
Storage cover
Optional

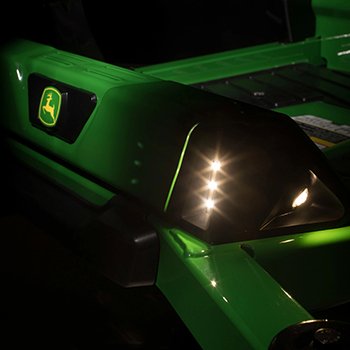

Light kit
Optional

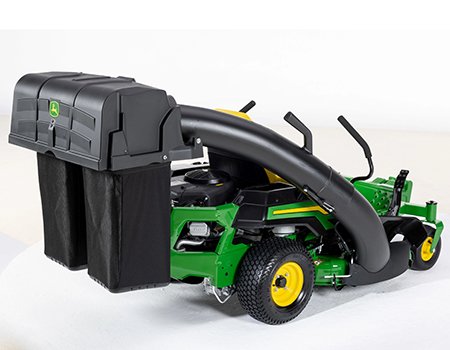

Material collection system
Two-bag cut-and-throw MCS, 6.5 bu 229 L
